One-hot encoding categorical variables

by | Jan 25, 2023 | Categorical Encoding, Feature Engineering, Machine Learning

One-hot encoding categorical variables

Categorical variables are those whose values are selected from a group of categories. For example, the variable “marital status,” with the values “never married,” “married, divorced, or “widowed,” is categorical.

Categorical data is a common occurrence in many data science projects. To train machine learning algorithms like linear regression, decision trees, or random forests, in particular if we are utilizing Scikit-learn, all predictor variables must be numerical. Even for deep learning models we need numerical features. Hence, we need to encode categorical values into numerical values. The act of replacing categories with numbers is called categorical encoding.

There are many categorical encoding strategies, like ordinal encoding (sometimes called label encoding), target or mean encoding, encoding with counts or frequencies, and one hot encoding.

In this article, we will discuss one hot encoding and its variations. So let’s get started!

For tutorials and step by step code implementations on other categorical encoding methods, visit our course Feature engineering for machine learning or check out our book Python Feature Engineering Cookbook.

Feature Engineering for Machine Learning course

One-hot encoding

In one-hot encoding, we represent a categorical variable as a group of binary variables, where each binary variable represents one category. The binary variable takes the integer value 1 if the category is present, or 0 otherwise.

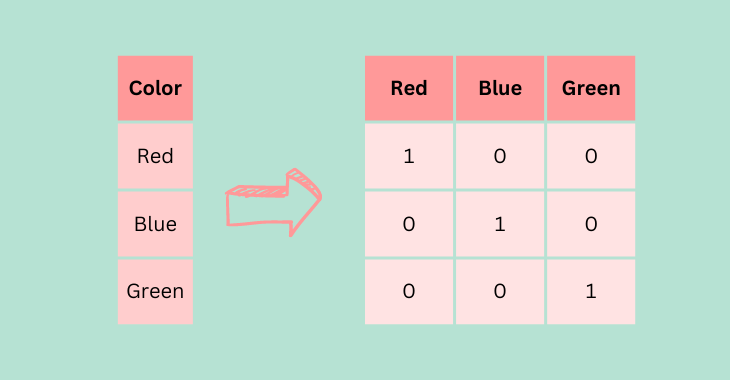

The following table shows the one hot encoded representation of the categorical variable Color with the values of redblue, and green:

Diagram showing the process of one hot encoding 1 categorical variable into 3 binary variables that represent each of the categories.

K vs k-1 binary variables

A categorical variable with k unique categories can be encoded in k-1 binary variables. To capture all of the information for the Color variable, which has three categories (k = 3; red, blue, and green), we need to create two (k – 1 = 2) binary variables.

  • If the observation is red, it will be captured by the variable red (red = 1, blue = 0).
  • If the observation is blue, it will be captured by the variable blue (red = 0, blue = 1).
  • If the observation is green, it will be captured by the combination of red and blue (red = 0, blue = 0).

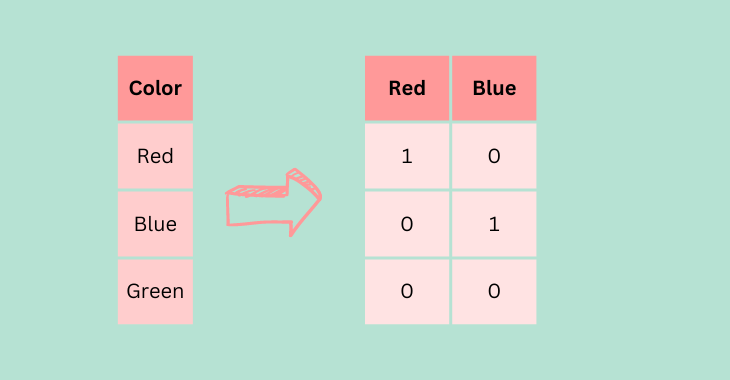

Diagram showing the result of one hot encoding a variable into k minus 1 categories.
Encoding into k-1 binary variables is well suited for linear models.

There are, however, a few occasions in which we may prefer to encode the categorical variables with k binary variables:

  • When training decision trees, since they do not evaluate the entire feature space at the same time.
  • When selecting features recursively.
  • When determining the importance of each category within a variable.

Special case: binary variables

Binary variables, such as “is underage,” which takes the values yes or no, are always encoded into one binary variable, because if the minor is underage, the binary takes the value 1, otherwise it takes the value 0.

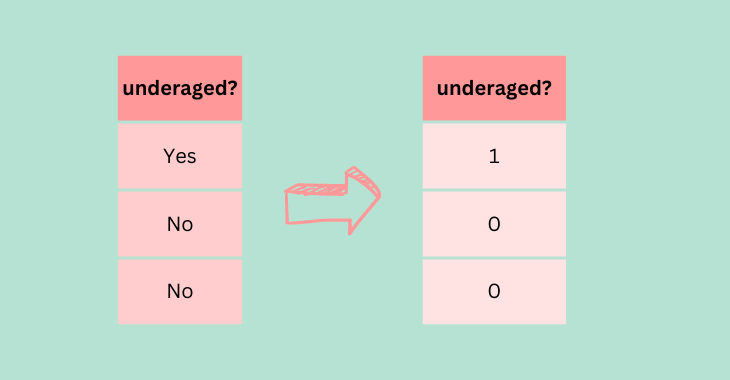

Diagram showing the result of one-hot encoding a binary variable with 2 categories only.

Python implementation of one hot encoding

Let’s now compare the one-hot encoding implementations of pandas, scikit-learn, Feature-engine and Category Encoders.

We first make imports, load the data set and separate it into a training and a testing set:

import numpy as np
import pandas as pd
from sklearn.model_selection import train_test_split
df = pd.read_csv('https://www.openml.org/data/get_csv/16826755/phpMYEkMl')
df = df.replace('?', np.nan)
def get_first_cabin(row):
    try:
        return row.split()[0]
    except:
        return np.nan
df['cabin'] = df['cabin'].apply(get_first_cabin)
df['cabin'] = df['cabin'].str[0]
df.fillna("Missing", inplace=True)
usecols=['sex', 'embarked', 'cabin', 'pclass', 'sibsp', 'parch', 'survived']
df[usefols].head()

Below we see a view of the original dataset:

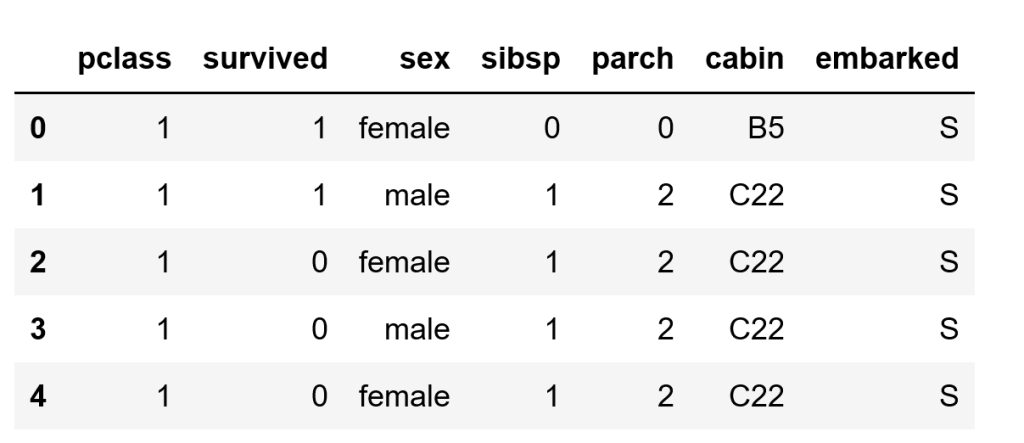

Dataframe view containing the first five rows of the titanic dataset.

Let’s now split it into a training and a testing set:

X_train, X_test, y_train, y_test = train_test_split(
    df[usecols],
    df['survived'],
    test_size=0.3,
    random_state=0,
)

Pandas

The Titanic dataset has both categorical and numerical data. Let’s one hot encode all the categorical columns into k-1 binaries, capturing the result in a new dataframe:

X_train_enc = pd.get_dummies(X_train,  drop_first=True)
X_test_enc = pd.get_dummies(X_test , drop_first=True)
X_train_enc.head()

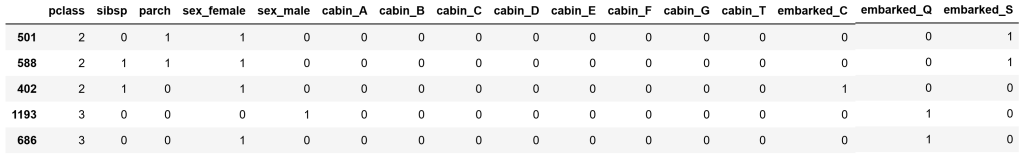

Dataframe containing the one hot encoded variables after using pandas get_dummies

The method get_dummies from pandas will automatically encode all variables of data type categorical or object in the dataframe. Note how it replaces the categorical variables by the dummy variables in the previous image.

We can now use our categorical variables as predictors to train algorithms of artificial intelligence.

Scikit-learn

Let’s now carry out one hot encoding utilizing Scikit-learn. Let’s import the one hot encoder and a class to transform variable subsets:

from sklearn.compose import ColumnTransformer
from sklearn.preprocessing import OneHotEncoder

Let’s set up the transformer to encode into k-1 binary variables and return a dataframe:

encoder = OneHotEncoder(drop=”first”, sparse=False)

We need to set sparse to False, so that the encoder returns and array instead of a sparse matrix. This is also necessary if we want to return dataframes as outputs.

ohe = ColumnTransformer(
    transformers=[("ohe", encoder, ["sex", "embarked", "cabin"]),],
    remainder="passthrough",
)
ohe.set_output(transform="pandas")

See the recently released set_output API for more information about how to make Scikit-learn transformers return pandas dataframes instead of arrays.

Let’s now fit the encoder to the training data and then transform the variables:

ohe.fit(X_train)
X_train_t = ohe.transform(X_train)
X_test_t = ohe.transform(X_test)
X_train_t.head()

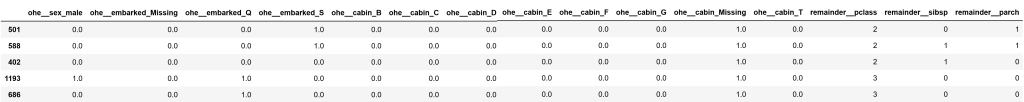

Dataframe containing one hot encoded variables after applying sklearn's transformation



The binary vectors corresponding to the one hot encoded variable are shown to the left of the dataframe. After that, the column transformer appended the original numerical variables, that were not transformed.

Note that the ColumnTransformer changes both the variable name and the variable order in the output dataframe.

Feature-engine

Let’s now see the advantage of using the OneHotEncoder from Feature-engine. Let’s import the encoder:

from feature_engine.encoding import OneHotEncoder

Next, let’s set up the encoder to return k-1 binary variables:

ohe_enc = OneHotEncoder(drop_last=True)

Now, let’s transform the variables. With Feature-engine, the input data can be the entire dataframe, yet the transformer will encode only the categorical variables:

X_train_enc = ohe_enc.fit_transform(X_train)
X_test_enc = ohe.transform(X_test)
X_train_enc.head()

We see that Feature-engine automatically appends the dummy variables as new columns to the input dataframe:

Dataframe containing the one hot encoded variables after using feature engine

Category encoders

Finally, let’s carry out one hot encoding with Category encoders. Let’s import the encoder:

from category_encoders.one_hot import OneHotEncoder

Let’s set up the encoder. We set use_cat_names to True to return the variable names plus the category as the dummy variable names. Category encoder’s OneHotEncoder does not seem to have the option to encode into k-1 dummies.

ohe_enc = OneHotEncoder(use_cat_names=True)

And now, let’s fit the transformer and encode the variables:

ohe_enc.fit(X_train)
X_train_enc = ohe_enc.transform(X_train)
X_test_enc = ohe_enc.transform(X_test)

Category Encoders’ OneHotEncoder() returns a copy of the original dataset plus the binary variables and without the original categorical variables. Thus, this data is also ready to train machine learning models.

Comparing the Python implementations

We compared the one-hot encoding implementation of pandas, scikit-learn, Feature-engine and Category Encoders. Each implementation has advantages and shortcomings.

Let’s summarize the main characteristics of each library:

Pandas, Feature-engine and Category Encoders can automatically identify and encode categorical variables, that is, those of type object or categorical. Scikit-learn’s OneHotEncoder(), on the other hand, will encode all variables in the dataset.

With pandas, Feature-engine and Category Encoders, we can encode only a subset of the variables, indicating their names in a list when calling the methods or transformers. With Scikit-learn we need to use an additional class, the ColumnTransformer(), to slice the data before the transformation.

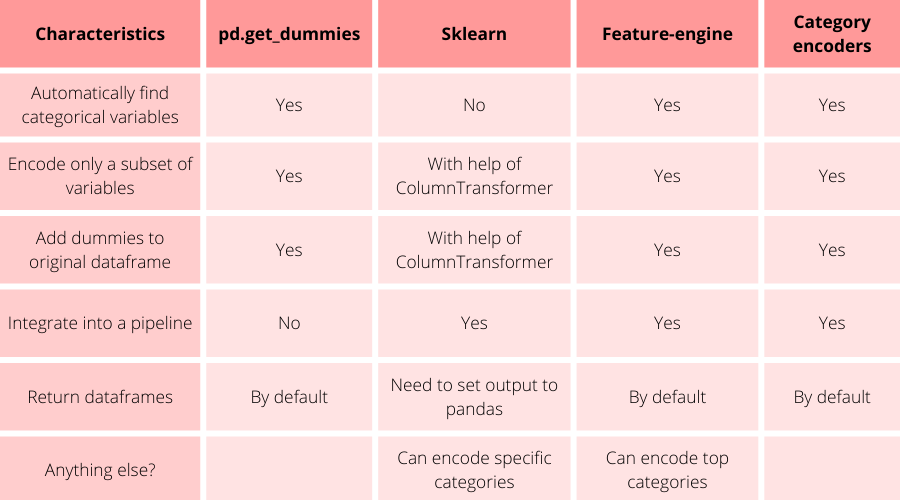

Table comparing the Python implementations of one hot encoding by scikit-learn, pandas, category encoders and Feature-engine

With Feature-engine and Category Encoders, the dummy variables are added to the original dataset and the categorical variables are removed after the encoding. With Scikit-learn, we need to use the ColumnTransformer, and with pandas, we need to carry out these procedures manually.

Finally, using the OneHotEncoder() from Scikit-learn, Feature-engine and Category Encoders, we can perform the encoding step within a Scikit-learn Pipeline, which is more convenient if we have various feature engineering steps or want to put the Pipelines into production. Pandas get_dummies() is otherwise well suited for data analysis and visualization.

Encoding a subset of categories using one-hot

Oftentimes, we are only interested in a subset of the values of a categorical variable. For example, for the variable City, we may be interested only in the big capitals. Therefore, we can create binary variables to represent only those categories.

Let’s see how to encode only a subset of the categories of categorical variables utilizing numpy and scikit-learn.

Let’s first import the Python libraries and functions:

import numpy as np
import pandas as pd
from sklearn.model_selection import train_test_split

Let’s load the credit approval dataset (for guidelines to prepare the data check this github repo:

data = pd.read_csv(“credit_approval_uci.csv”)

X_train, X_test, y_train, y_test = train_test_split(
    data.drop(labels=[“target”], axis=1),
    data[“target”],
    test_size=0.3,
    random_state=0,
)

Let’s inspect the unique categories of the A6 variable:

X_train[“A6”].unique()

The unique values of A6 are displayed in the following output:

array(['c', 'q', 'w', 'ff', 'm', 'i', 'e', 'cc', 'x', 'd', 'k', 'j', 'Missing, 'aa', 'r'], dtype=object)

Let’s make a list with the categories from A6 that we want to encode using one-hot:

categories = ["aa", "cc", "ff"]

Let’s add the binary variables to the train and test sets for the former categories:

for category in categories:
    X_train[f"A6_{category}"] = np.where(X_train["A6"] == category, 1, 0)
    X_test[f"A6_{category}"] = np.where(X_test["A6"] == category, 1, 0)

Let’s visualize the data:

X_test.head()

We can see the binary variables at the right of the dataframe in the output of the precedent command:

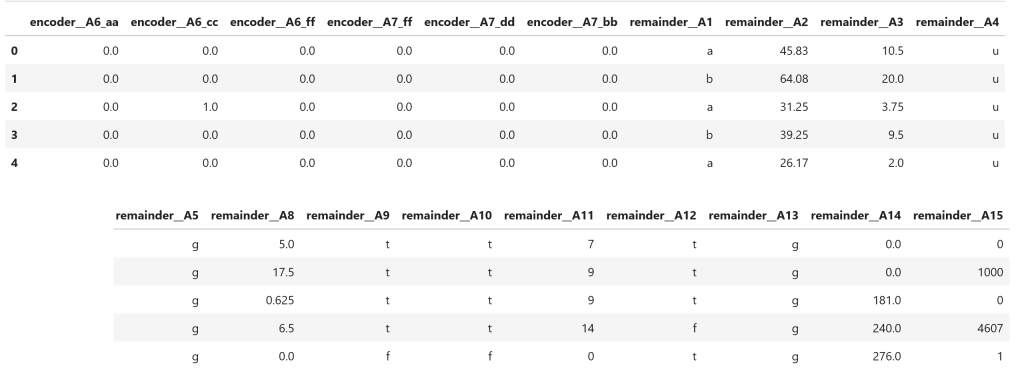

Dataframe with the result of applying one hot encoding to a subset of the categories in the variable.

Now, let’s automate the procedure utilizing scikit-learn. Let’s import the OneHotEncoder() and the ColumnTransformer():

from sklearn.preprocessing import OneHotEncoder
from sklearn.compose import ColumnTransformer

Let’s set up the encoder to create binary variables for some categories in 2 of the variables:

encoder = OneHotEncoder(
    categories=[["aa", "cc", "ff"], ['ff', 'dd', 'bb']],
    handle_unknown="ignore",
    sparse=False,
)

Let’s set up the ColumnTransformer() to encode the variables A6 and A7 and to return all variables in the final output:

ct = ColumnTransformer(
    [("encoder", encoder, ["A6", "A7"])],
    remainder="passthrough",
)

Let’s fit the encoder to the train set:

ct.fit(X_train)

Let’s replace the categorical variables by the one-hot encoded in train and test sets:

X_train_enc = ct.transform(X_train)
X_test_enc = ct.transform(X_test)

Let’s obtain the name of the final features:

ct.get_feature_names_out()

We can see the name of the variables in the final output in the return of the precedent command:

array(['encoder__A6_aa', 'encoder__A6_cc', 'encoder__A6_ff',
       'encoder__A7_ff', 'encoder__A7_dd', 'encoder__A7_bb',
       'remainder__A1', 'remainder__A2', 'remainder__A3', 'remainder__A4',
       'remainder__A5', 'remainder__A8', 'remainder__A9',
       'remainder__A10', 'remainder__A11', 'remainder__A12',
       'remainder__A13', 'remainder__A14', 'remainder__A15'], dtype=object)

Finally, let’s transform the Numpy array into a pandas dataframe, add the variable names and display the first five rows:

X_test_enc = pd.DataFrame(X_test_enc)
X_test_enc.columns = ct.get_feature_names_out()
X_test_enc.head()

We can see the resulting dataframe in the return of the precedent command:

  encoder__A6_aa encoder__A6_cc encoder__A6_ff encoder__A7_ff encoder__A7_dd  \
0            0.0            0.0            0.0            0.0            0.0
1            0.0            0.0            0.0            0.0            0.0
2            0.0            1.0            0.0            0.0            0.0
3            0.0            0.0            0.0            0.0            0.0
4            0.0            0.0            0.0            0.0            0.0
  encoder__A7_bb remainder__A1 remainder__A2 remainder__A3 remainder__A4  \
0            0.0             a         45.83          10.5             u
1            0.0             b         64.08          20.0             u
2            0.0             a         31.25          3.75             u
3            0.0             b         39.25           9.5             u
4            0.0             a         26.17           2.0             u

  remainder__A5 remainder__A8 remainder__A9 remainder__A10 remainder__A11  \
0             g           5.0             t              t              7
1             g          17.5             t              t              9
2             g         0.625             t              t              9
3             g           6.5             t              t             14
4             g           0.0             f              f              0

  remainder__A12 remainder__A13 remainder__A14 remainder__A15
0              t              g            0.0              0
1              t              g            0.0           1000
2              t              g          181.0              0
3              f              g          240.0           4607
4              t              g          276.0              1

Remember that now, instead of this workaround to transform the numpy array into a dataframe we can just set the output to pandas with the set_ouput method.

One-hot encoding of frequent categories

One-hot encoding represents each category of a categorical variable with a binary variable. Hence, one-hot encoding of variables with high cardinality or datasets with multiple categorical features can expand the feature space dramatically.

To reduce the number of binary variables, we can perform one-hot encoding of the most frequent categories only. One-hot encoding of top categories is equivalent to treating the less frequent categories as a single, unique category.

Let’s implement one-hot encoding of the most popular categories using pandas and Feature-engine.

Let’s first import the necessary Python libraries and get the dataset ready:

import pandas as pd
import numpy as np
from sklearn.model_selection import train_test_split
from feature_engine.encoding import OneHotEncoder

Let’s load the dataset and divide into train and test sets:

data = pd.read_csv(“credit_approval_uci.csv”)
X_train, X_test, y_train, y_test = train_test_split(
    data.drop(labels=[“target”], axis=1),
    data[“target”],
    test_size=0.3,
    random_state=0,
)

Let’s inspect the unique categories of the A6 variable:

X_train[“A6”].unique()

The unique values of A6 are displayed in the following output:

array(['c', 'q', 'w', 'ff', 'm', 'i', 'e', 'cc', 'x', 'd', 'k', 'j', 'Missing, 'aa', 'r'], dtype=object)

Let’s count the number of observations per category of A6, sort them in decreasing order, and then display the five most frequent categories:

X_train[“A6”].value_counts().sort_values(ascending=False).head(5)

We can see the five most frequent categories and the number of observations per category in the output of the previous step:

c 93
q 56
w 48
i 41
ff 38

Let’s capture the most frequent categories of A6 in a list:

top_5 = [x for x in X_train['A6'].value_counts().sort_values( ascending=False).head(5).index]

Now, let’s add a binary variable per top category in the train and test sets:

for label in top_5:
   X_train[f"A6_{label}"] = np.where(X_train["A6"] == label, 1, 0)
   X_test[f"A6_{label}"] = np.where(X_test["A6"] == label, 1, 0)

Let’s output the top 10 rows of the original and encoded variable, A6, in the train set:

print(X_train[['A6'] + [f"A6_{label}" for label in top_5]].head(10))

We can see in the output of the previous step, the original A6 variable, followed by the new binary variables and some of their values:

     A6  A6_c  A6_q  A6_w  A6_i  A6_ff
596   c     1     0     0     0      0
303   q     0     1     0     0      0
204   w     0     0     1     0      0
351  ff     0     0     0     0      1
118   m     0     0     0     0      0
247   q     0     1     0     0      0
652   i     0     0     0     1      0
513   e     0     0     0     0      0
230  cc     0     0     0     0      0
250   e     0     0     0     0      0

We can simplify one-hot encoding of frequent categories, with Feature-engine. Let’s set up the one-hot encoder to encode the five most frequent categories of the variables A6 and A7:

ohe_enc = OneHotEncoder(top_categories=5, variables=['A6', 'A7'])

Let’s fit the encoder to the train set so that it learns and stores the most frequent categories of A6 and A7:

ohe_enc.fit(X_train)

Finally, let’s encode A6 and A7 in the train and test sets:

X_train_enc = ohe_enc.transform(X_train)
X_test_enc = ohe_enc.transform(X_test)
X_train_enc.head()

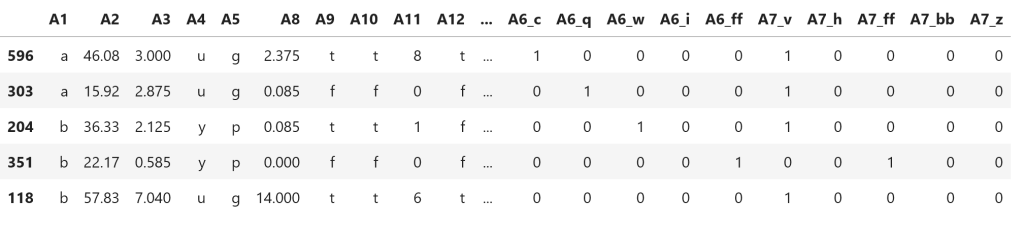

Dataframe with the result of one hot encoding the most frequent categories only

And that’s it! We’ve now covered one hot encoding with a lot of detail!

More categorical encoding in Python

If you want to learn more about categorical encoding and how to carry it out in Python, check out our course and book:

Python Feature Engineering Cookbook book cover

Both the course and the book contain a great amount of information regarding:

  • the logic of the methods
  • their advantages and limitations
  • code examples using real world datasets

Course and book are suitable for beginner and intermediate data scientists alike.
